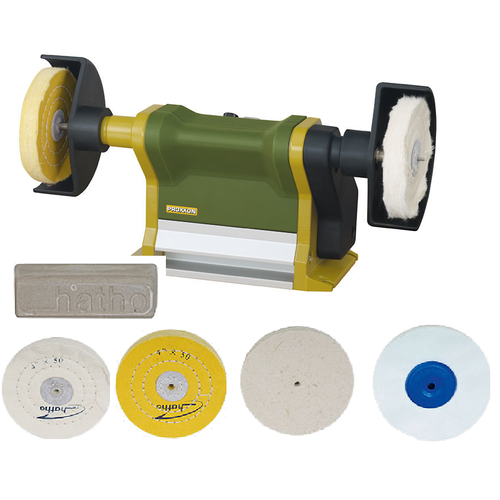

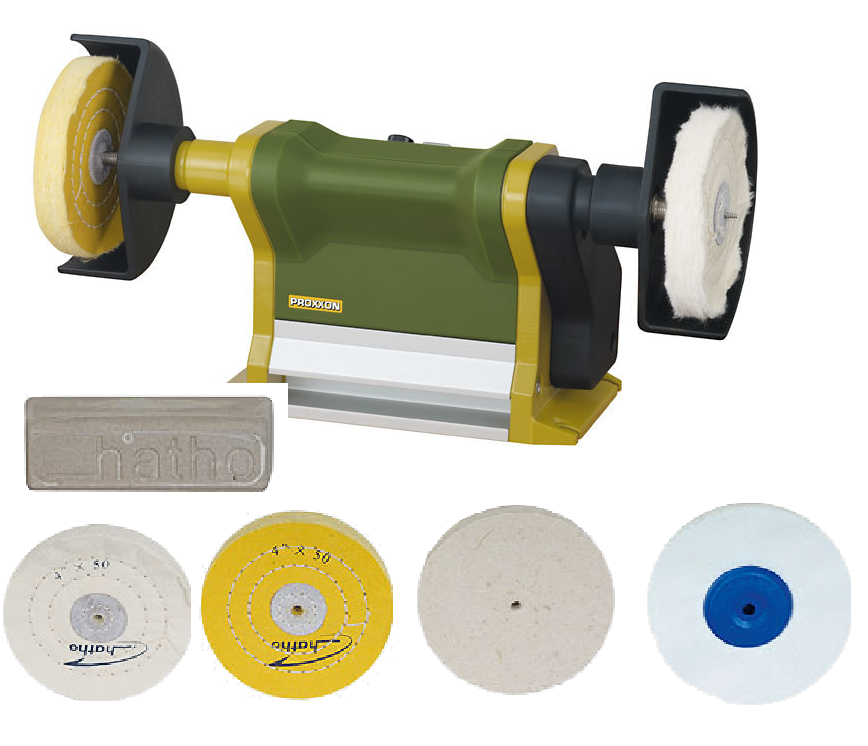

PROXXON Polishing Kit featuring PM 100 and Accessories

Features: 27180 PM 100 Polishing Machine, 28000 Muslin polishing wheel, stiff, 28002 Muslin polishing wheel, soft, 28004 Felt cloth polishing disc, 28006 Microfibre polishing wheel, and 28008 Universal polishing bar

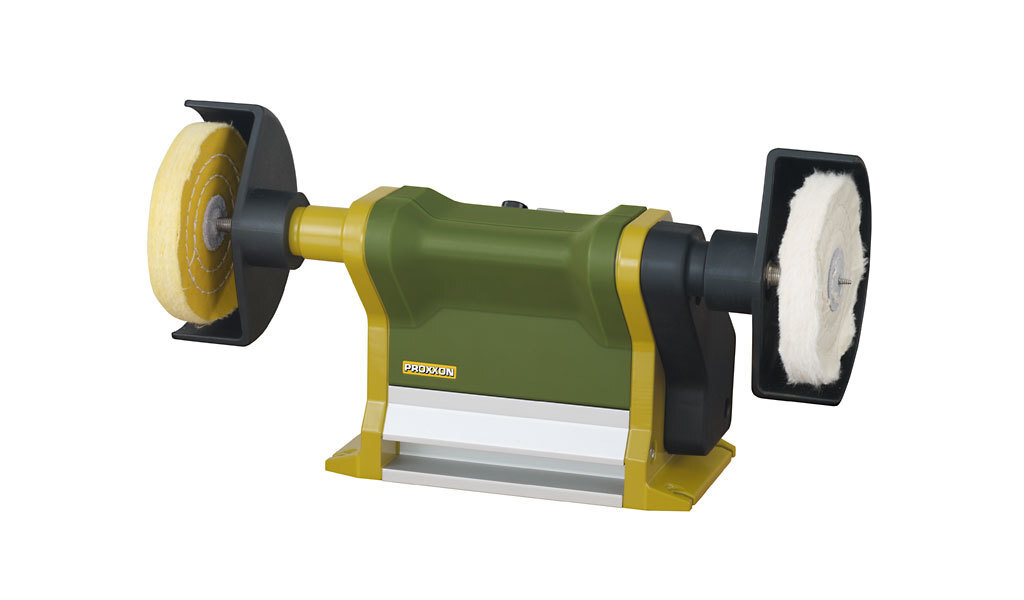

Polishing machine PM 100

For standard brushes and inserts up to 4" or 102mm. Load bearing side parts made of aluminium with milled bearing seats enable very quiet low-vibration operation.

With long, ball bearing mounted main shaft (distance from disc to disc approx. 360mm) and adjustable protective guards to work cleanly with polishing pastes.

Powerful drive through DC motor with speed control (full-wave electronics). For high starting torque and enormous traction even during strong contact pressure. Firm mounting with screws, but also with the attached screw clamp in horizontal or vertical position.

Included with the original equipment: 1 each stiff and soft muslin polishing wheel (100 x 15mm) and 1x universal polishing bar (80g).

Technical data:
230V. 140W. 50/60Hz. Variable speed of 1,000 - 3,100rpm. For polishing discs up to a max. of 4" or Ø 102mm. Size L 320, W 220, H 250mm. Weight approx. 5kg. Insulated to class 1.

NO 27 180

Note:
Shaft drive via toothed belt: The motor no longer limits the working area. The slim housing around the main shaft even enables machining the surface of very long and variously shaped work pieces.

Product Video available below:

https://www.proxxon.com/en/video/27180.mp4

Product Manual (including spare parts list) available below:

27180 Manual

Proxxon Muslin polishing wheel, stiff (100 x 15mm) for PM 100
Impregnated and especially stiff. For preliminary and shine polishing of gold, silver, platinum, copper, brass, stainless steel and plastic. Use only with polishing paste or polishing emulsion.

Proxxon Muslin polishing wheel, soft (100 x 15mm) for PM 100

For high shine polishing of gold, silver, platinum, copper, brass, stainless steel and plastic. Adapts to the workpiece contour. Use only with polishing paste or polishing emulsion.

Proxxon Felt cloth polishing disc (100 x 15mm) for PM 100

For high shine polishing of smooth surfaces on metals (e.g. gold, silver, brass, and aluminium). High lateral stability and durability. Very even polishing results. For use with all polishing pastes.

Proxxon Microfibre polishing wheel, 15-ply (100mm) for PM 100

Very soft. For shine polishing of precious and non-precious metals as well as plastic. Especially suitable for spots difficult to access which cannot be reached with rigid discs. Use only with polishing paste or polishing emulsion.

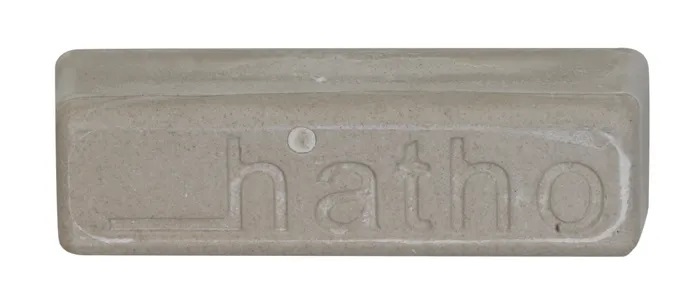

Proxxon Universal polishing bar (80g) made from polishing compound and wax for PM 100

Particularly suitable for polishing and high shine polishing of precious and nonprecious metals as well as plastic. Also for freshening tarnished aluminium, copper or brass.
